Details

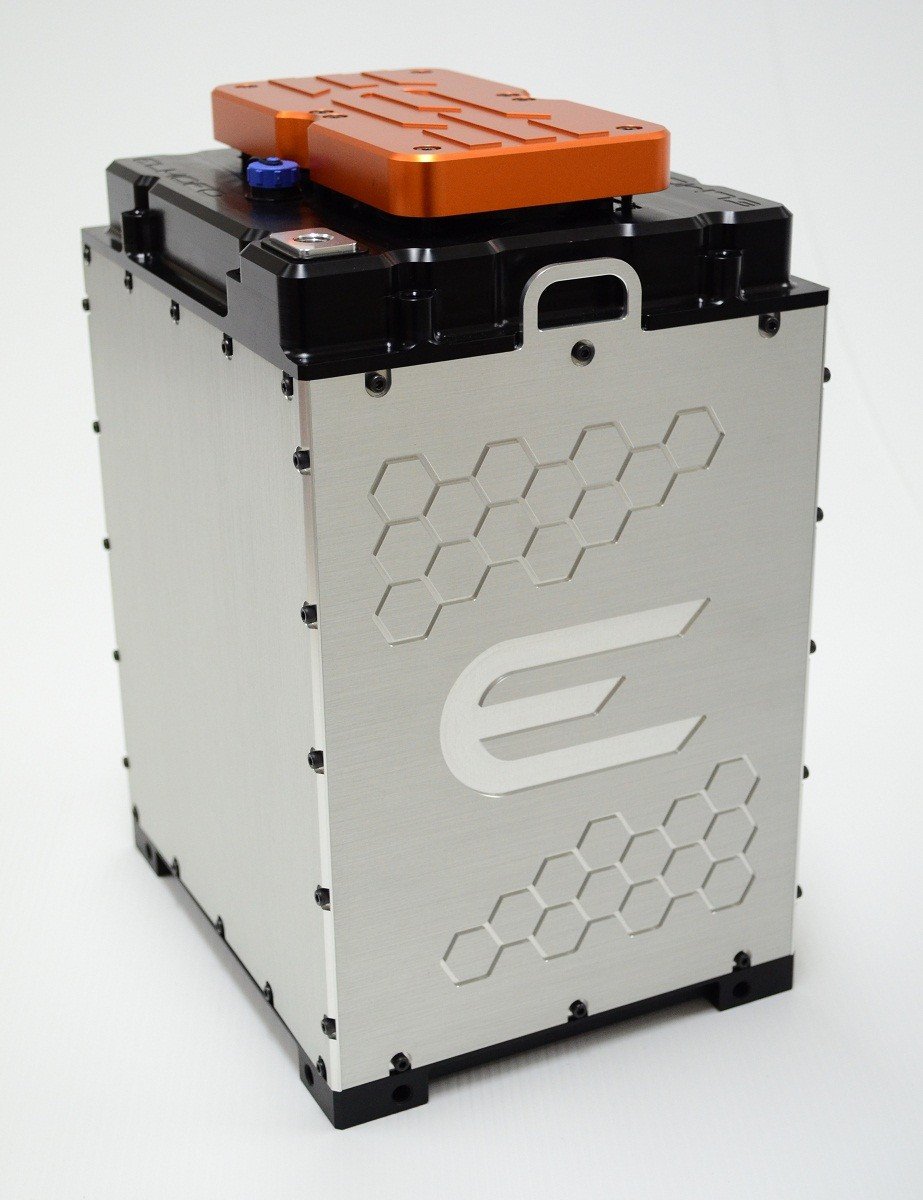

Designed and assembled in Australia, ELMOFO E-Cells are made for Australian conditions. The modules employ Kokam's advanced Lithium cell technology - rigorously tested and refined to produce one of the most energy dense storage systems available today.
Specifications
| Module Voltage (Nominal) | 25.9 Vdc |
| Module Capacity | 106 Ah |
| Module Energy Capacity | 2.745 kWh |
| Usable Energy (Maximum) | 2.470 kWh |
| Usable Energy (Long Life) | 2.196 kWh |
| Maximum Current Draw (Ind / EV) | 848 Amps |
| Recommended ESS Current Draw | 106 Amps |
| Recommended ESS Inverter Rating | 2.7 kW |
| Module Weight | 21.0 kg |
| Module Dimensions (L x W x H) | 190 x 229 x 324mm |
| Module Energy Density by Weight | 130 Wh/kg |
| Cycle Life (1C/1C to 80% DOD) | > 6000 cycles |
| Life Expectancy | > 10 years |
| Battery Management System (BMS) | Inside |
RESIDENTIAL ENERGY STORAGE SYSTEMS
Energy storage systems reduce power bills and provide blackout protection for essential appliances - more and more people are adopting this technology in their homes. Teamed with an effective solar array, it's easy to gain energy independence for your home with ELMOFO E-Cells.
COMMERCIAL & INDUSTRIAL
For industries with significant power requirements and high energy consuming equipment, ELMOFO E-Cells offer an efficient energy solution. Capable of high discharge currents and featuring a very long cycle life, these batteries are available in industry standard voltages of 24 and 48Vdc.
RACING & ELECTRIC VEHICLES
The ELMOFO E-Cells have a proven performance record in Electric Race Vehicles. The high energy density modules (up to 134Wh/kg) equal higher capacity for less weight. The high C-rate discharge is ideal for high-performance applications and is suitable for DC Fast Charging.
ELECTRIC & HYBRID MARINE
The same attributes that make the ELMOFO E-Cells a superior choice for electric vehicles apply to your marine requirements. The clean, anodised, machined aluminium finish is perfect for premium installations & maximum durability.
Proven Experience
ELMOFO E-Cells have been tried and tested under extreme conditions to guarantee high-performance and durability.
