Details
Suitable for a variety of applications including a Polaris Ranger EV Lithium Battery Upgrade.
These 48V 2 x 116Ah 12kWh (2 x 6kWh) ELMOFO Lithium Battery Packs were designed to enable a simple and effective upgrade from the lead-acid batteries factory fitted in most models of the Polaris Ranger EV offroad side-by-side vehicles.
ELMOFO Recreational EV Lithium Battery Packs utilise the ELMOFO 50NMC Powercells. These are CALB's A-Grade NMC Lithium Ion cells and are capable of more than 2000 cycles to 80% Depth of Discharge.
| Capacity: | 12kWh (2 x 6kWh 116Ah) |
| Voltage (Nom): | 51.8V |
| Voltage (Max): | 58.8V |
| Voltage (Min): | 42.0V |
| Discharge Current (Peak): | 900A 10sec (700A 2min) (BMS Limit) |
| Discharge Current (Cont): | 400A (BMS Limit) |
| Charging Current (Max): | 100A per module |
| Enclosure Dimensions: | 535 x 360 x 140mm per 6kWh pack |
| Unit Weight: | 30kg per module |
| Charger Included: | 30A SDEC Waterproof |
| Battery Monitor Included: | Victron BMV with Display and Bluetooth |
These Lithium modules feature:
• High power output
• Long battery life
• Excellent energy density
Other applications include:
• Energy storage for remote solar installations
• Remote radio and telecommunications sites
• Peak load shaving on domestic, commercial and industrial sites
• Battery backup for remote water pumping
• Solar lighting systems
• Mining and other industrial applications

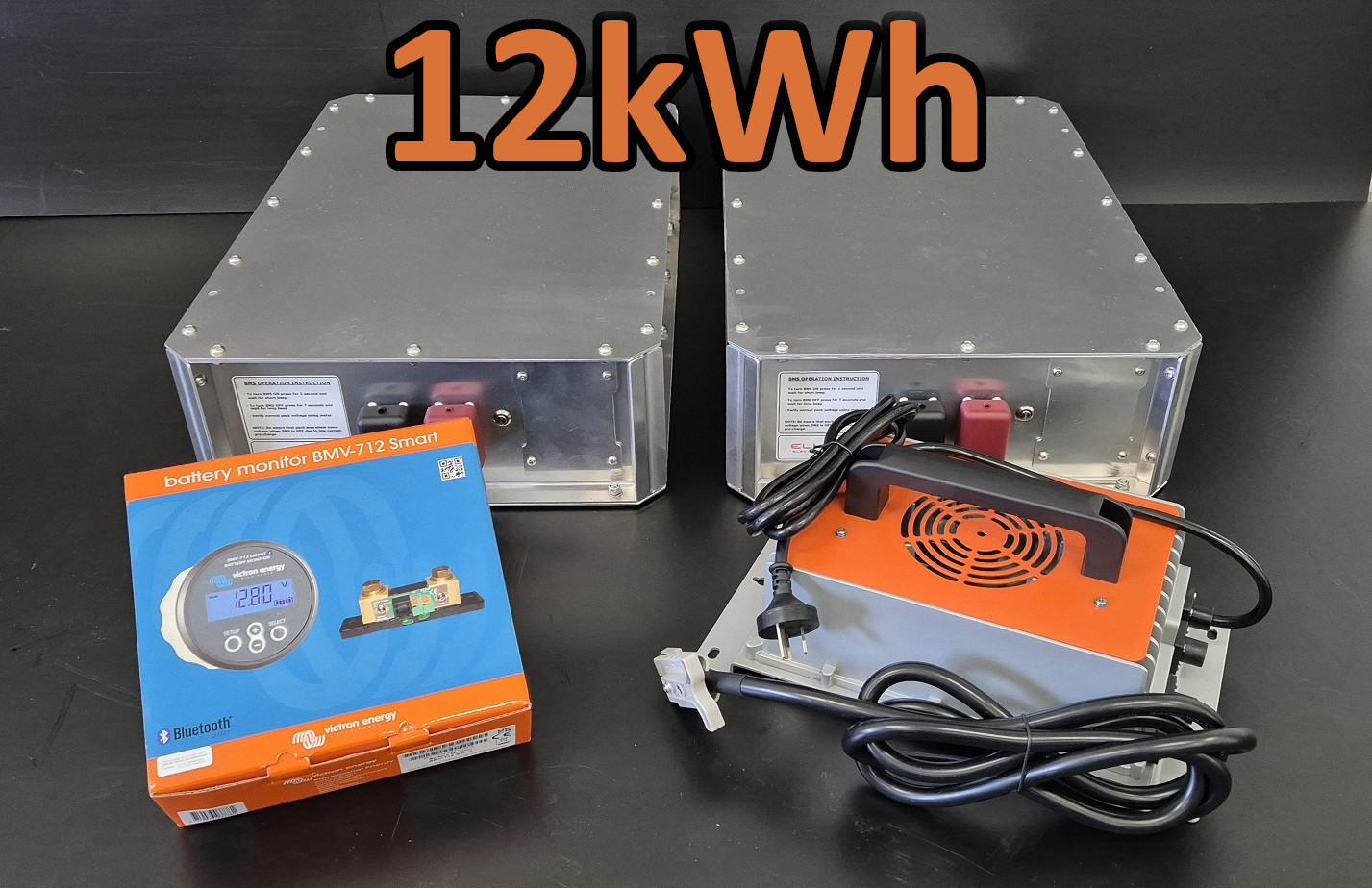

This kit includes:
- 2 x ELMOFO 48V 6kWh Lithium Battery Modules
- 1 x SDEC 58.8V 30A Waterproof Lithium Battery Charger
- 1 x Victron BMV712 SMART Battery Monitor
- 1 x 1.5m 6mm2 Twin DC Charging Lead Extension
- 2 x 50mm2 DC Cables (Shunt + Postive to Contactor)
- 2 x 20mm Rubber Mats for Under Battery Support
- 2 x Fibreglass U-Channel Hold Down Brackets
- 4 x M8 x 250mm Stainless Hold Down Rods, Nuts & Washers
