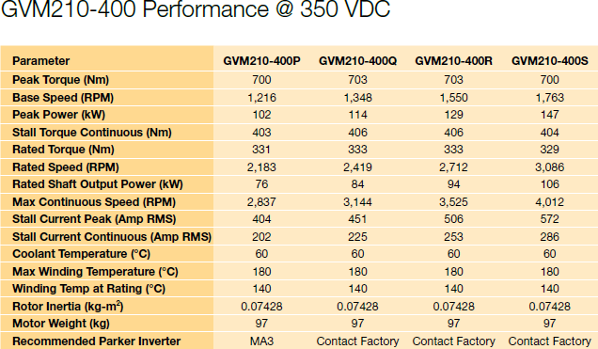

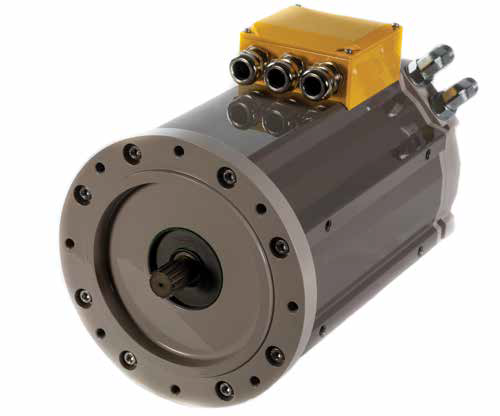

Parker GVM210-400 Electric Vehicle AC Traction Motor 350 VDC

The GVM (Global Vehicle Motor) is Parker’s PMAC offering for electric and hybrid electric powertrain motors, and electro-hydraulic actuation.

The GVM utilizes highly engineered magnetics to achieve efficiencies in peak regions not obtainable in other designs. It uses a new patent-pending advanced cooling system that has minimal impact on the size and weight of the motor. The scalability of the GVM allows the widest performance range available.

• Samarium Cobalt (SmCo) magnets allow high temperature operation and removes demagnetization.
• Highly efficient design reduces thermal dissipation requirements, lowering overall cooling system costs.
• Very low torque ripple - even at peak current.
• Low rotor inertia for high dynamic responsiveness.
• Can provide up to 20% more range for a given battery pack.
• Ultra-thin stator laminations with reduced slots virtually eliminates eddy currents.
• Patent pending cooling configuration yields very high cooling effectiveness regardless of motor length.
• Meets SAE J1455 heavy duty vehicle environmental standards.
